Description

The TSK circular ceiling diffuser offers an aesthetic minimalistic design, making it ideal for comfort applications. The unit consists of a pressed diffuser plate equipped with environmentally friendly noise-absorbing insulation and a back section with a circular air connection. The airflow and throw length can be calibrated by manually adjusting the slot opening to five standard heights, achieved by carefully pulling down or pushing up the front plate. The diffuser can be connected directly to an air duct system or a TK commissioning box.

The TSK model provides a 360° air distribution pattern, while the AP-TSK model features an internal deflector designed for a unidirectional 180° airflow pattern. Recommended maximum Δt: -10 to -12 °C.

Applications

The TSK diffuser is recommended for comfort ventilation purposes, such as residential applications, offices, schools, retail stores, hospitals, restarants, hotels and more.

Standard sizes

Ø100, 125, 160, 200, 250 mm

Airflow range

50 - 450 m³/h (14 - 125 l/s)

Materials and finish

The front diffuser plate is made of galvanized steel, the back section is made of sheet steel. The unit is powder coated in standard RAL 9003 white color. The air connection features an EPDM sealing.

Optional accessories

• RAM-TSK type frame

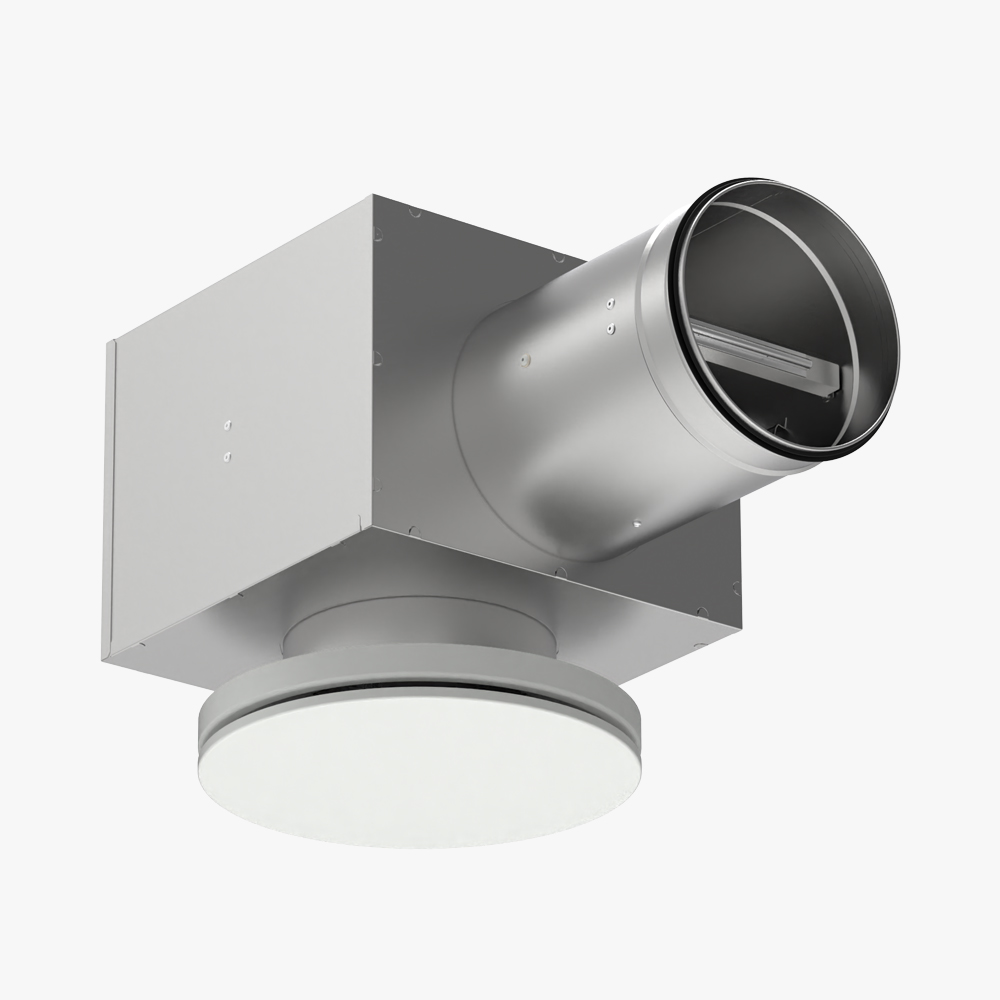

• TK: A commissioning box, featuring low build height, environmentally friendly sound-absorbent insulation, a supply air distribution plate, and a removable damper module for commissioning and measuring airflow. The sound insulation offers optimal noise attenuation, ensuring quiet operation to enhance comfort in various settings. The damper module is equipped with a measurement flange and hoses for precise airflow measurement, and the damper blade is fitted with adjustment cords for easier commissioning and securing the airflow. The low height is possible by the internal socket design of the diffuser connection, minimising the total height of the diffuser and box, when assembled together.
• DB-F: These sound-attenuated valve receiving boxes can be used in residential ventilation systems. Their task is to provide a stable connection point for various supply or exhaust valves, while facilitating the even, draft-free and noise-free introduction of air into the rooms. They are essential elements of mechanical ventilation systems primarily in residential buildings. They connect the 75 mm diameter flexible air duct coming from the ventilation equipment – via a distribution box – to the supply or exhaust valves. Thanks to their high mechanical strength, the boxes can be installed and securely fixed in the floor, concrete, ceiling or wall.
• MN: Sleeve/nipple for installation with a pressure box in suspended ceilings. The accessory adds 40 mm to the installation height.
• AP-TSK: 180° air distribution patterns
