The TNC ceiling diffuser offers a minimalistic appearance with a unique design, allowing for versatile horizontal and vertical air patterns, depending on the position of the diffuser plate, the supply air temperature, and air volume. The airflow direction can be adjusted manually by regulating the lower plate, simply by pulling down or pushing up the plate into the preferred position. The unit consists of a front panel and a form-pressed back section featuring a circular air connection. The diffuser can be directly connected to an air duct system or the TK or TLM commissioning box. The TNC model ensures high flexibility in its operation, with draught-free air distribution at a low noise level when correctly designed. Recommended maximum Δt: +/-10 °C.
The TNC diffuser is recommended for comfort ventilation purposes, including residential applications, offices, schools, retail stores, hospitals, restaurants, hotels, and more. It can also be used for extract air purposes, ensuring a unified appearance.
40-500 m³/h (11-140 l/s)
Ø125, 160, 200, 250
The front diffuser plate and the back section is made of sheet steel. The unit is powder coated in standard RAL 9003 white color. The air connection features an EPDM sealing.
TK: Our flagship commissioning box, with a low build height featuring environment friendly sound absorbent insulation, a supply air distribution plate and a removable damper module for commissioning and measuring of the airflow. The low height is possible by the internal socket design of the diffuser connection, minimising the total height of the diffuser and box, when assembled together.

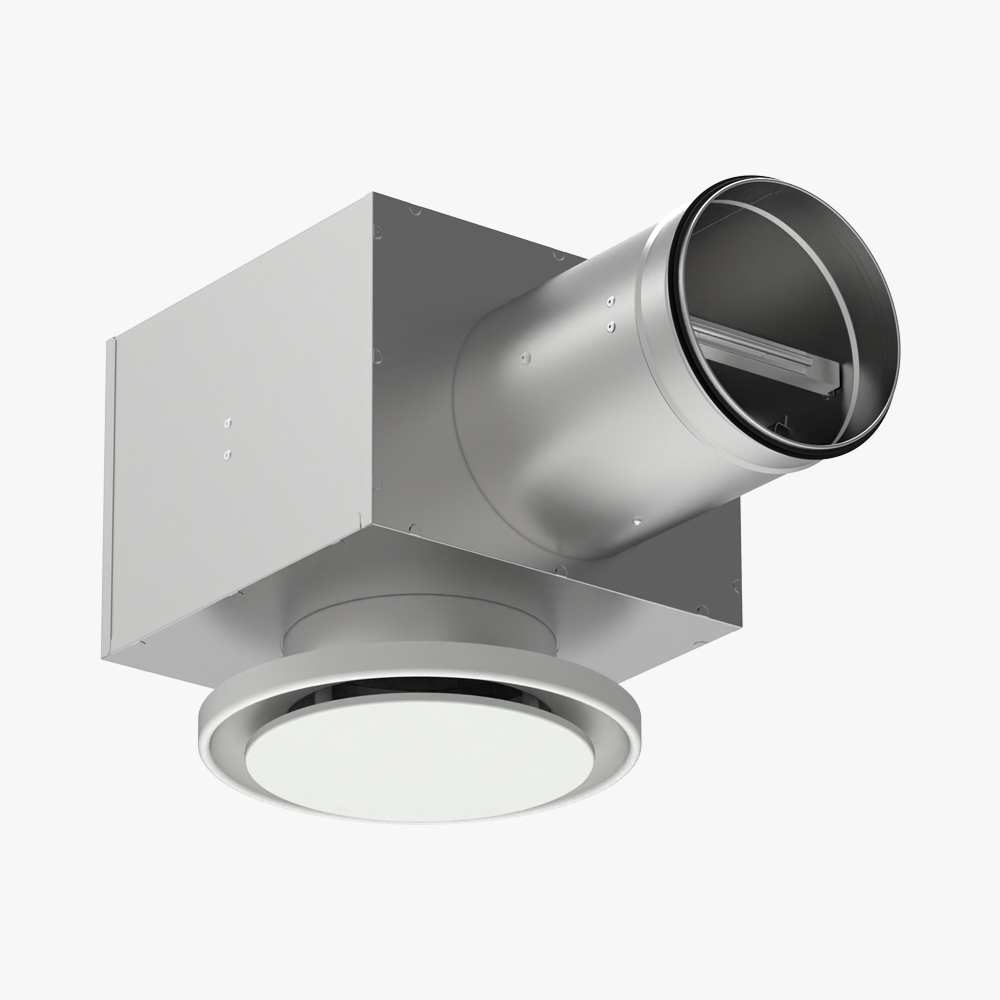

TLM: A compact commissiong box for airflow regulation with supply air diffusers, featuring environment friendly sound absorbent insulation, a supply air distribution plate and a damper module. The product is designed for ceiling installation and ideal for flush mounting in suspended (false) ceilings.
MN: spigot/nippel
