NRA/NRA-M

Industrial supply air diffuser

Open gallery

NRA/NRA-M

Industrial supply air diffuser

Description

NRA is a ceiling diffuser, for both summer and winter application, equipped with a vertically adjustable front plate design, in order to obtain either a concentrated long airstream or a short diffused throw length. The horizontal air deflectors that can be found inside the supply air diffuser, can be adjusted

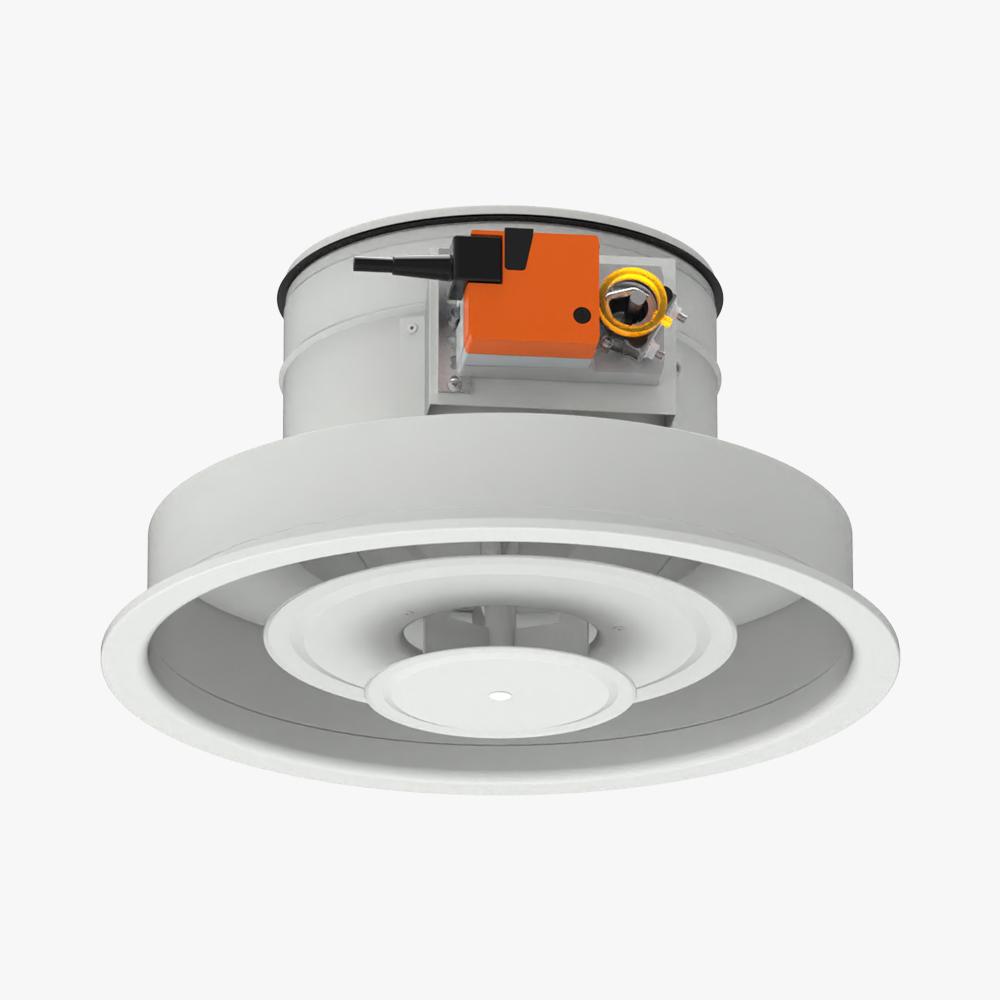

either manually (NRA) or with a Belimo LM24A (NRA-M) actuator. NRA ceiling diffuser is best suited for ventilating, cooling and heating larger public facilities, such as sport halls, department stores, warehouses, industrial buildings etc., where a long distance throw length and high ventilation efficiency is required, and for highest efficiency it is recommended to use it together with Airvent’s TIDEC system which also makes automatic control possible. The unit can be installed in false ceilings or free hanging.

Standard sizes

Ø200-400 mm

Airflow range

100-600 l/s (360-2160 m³/h), for further information see the diagrams.

Material & finish

The NRA supply air diffuser is made of steel sheet. The unit is powder coated in standard RAL 9003 white color, and has a rubber gasket on the air connection.
