Description and function

The BRG is a rectangular wall-mounted supply air diffuser designed for comfort ventilation in a variety of applications. It features a front panel with adjustable louvers, allowing for flexible air distribution patterns tailored to the specific needs of the space. The diffuser can be mounted directly into an air duct or with an optional commissioning box (BRL), providing evenly distributed airflow  across the louvres, while keeping the noise levels low.

The recommended maximum temperature difference (Δt) for optimal performance is -10°C.

Applications

The BRG is best suited for comfort environments such as offices, schools, apartments, restaurants,hotels, and retail stores. Its design ensures efficient and flexible air distribution, improving room comfort while maintaining a low noise level. The adjustable deflectors allow for versatile airflow direction, making it adaptable to various room layouts and ventilation requirements.

Standard sizes

Ø100, 125, 160, 200

Airflow range

90 - 403 m³/h (25-112 l/s)

Materials

The front diffuser panel is made of galvanzed steel, the outer frame and louvres are aluminum. It is powder-coated in RAL 9003 standard white color.

Optional accessories

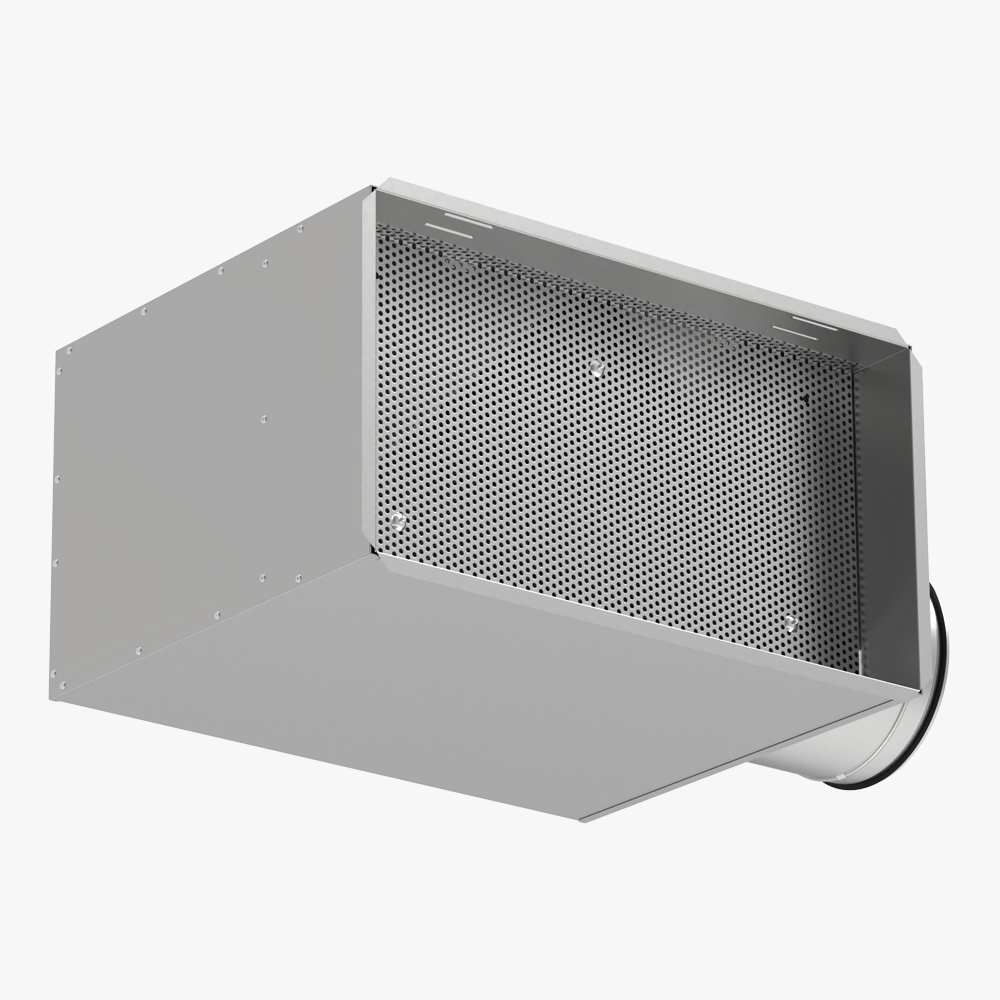

The BRG diffuser is available with the optional BRL commissioning box,  with either rear (BRL-B) or side (BRL-S) connection options. See BRL data sheet for more information. The wall diffuser is also available wth a mounting frame type RAM, enabling the front panel to be fixed with clips for an aesthetic appearance,  without the use of visible screws. The BRD can also be paired with a control damper type S.
