Description and function

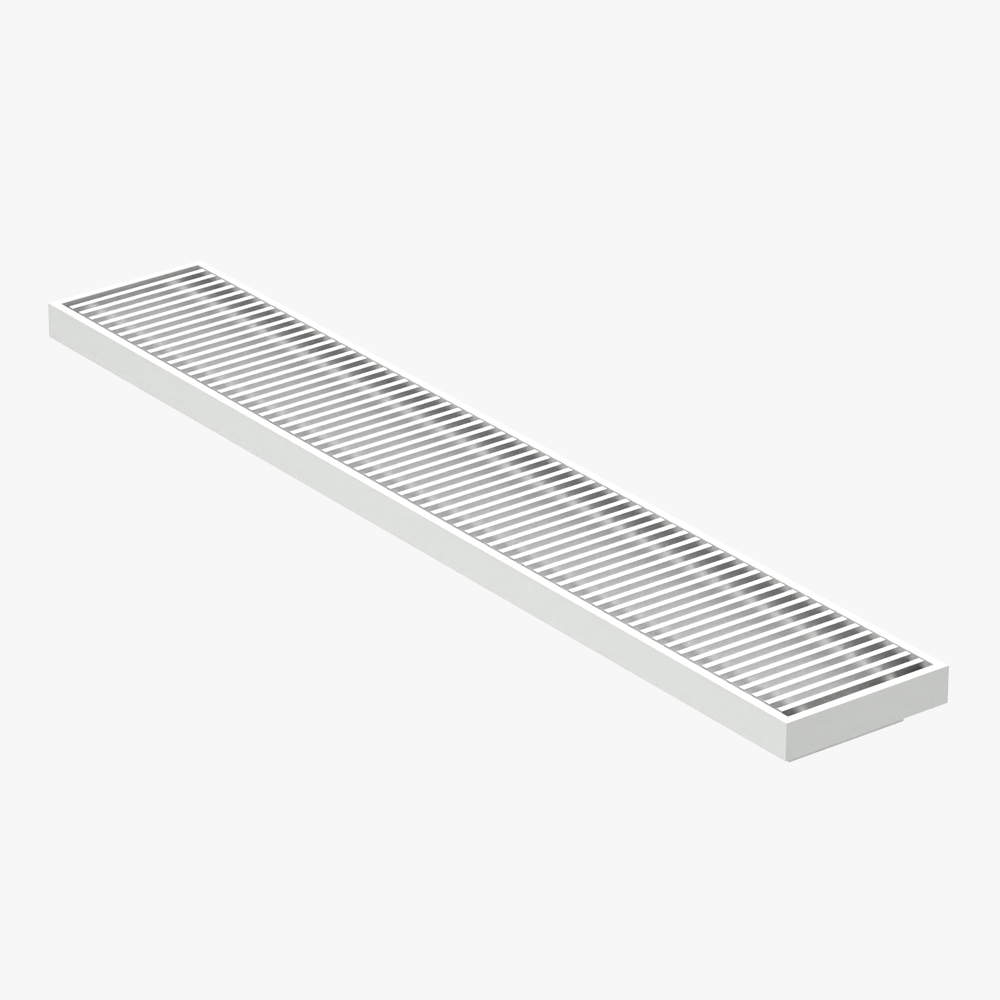

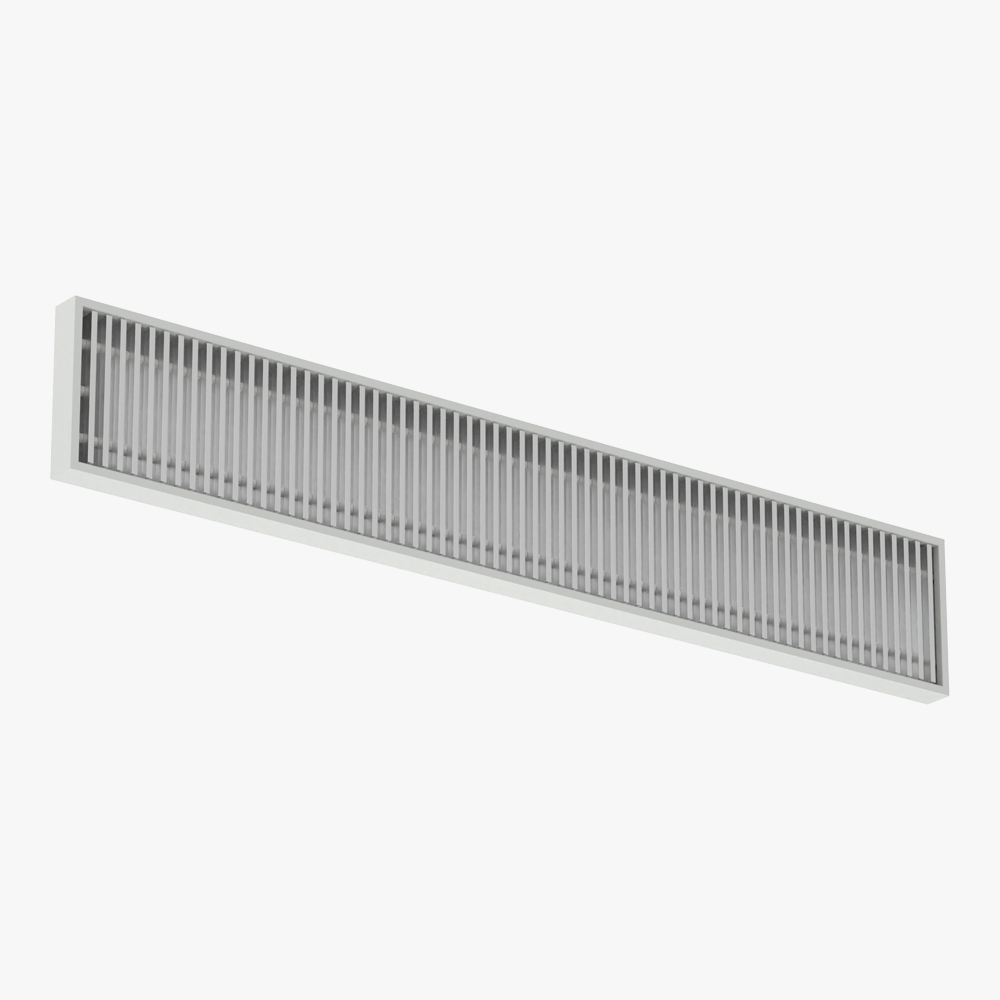

The AGF is a rectangular linear bar grille designed for floor installation, featuring fixed aluminum deflectors. It consists of an extruded aluminum frame and a removable internal louver unit. The louvers are made of firmly connected extruded aluminum profiles, ensuring durability and stability. Engineered to handle airflow supply or extraction in various environments, the grille's surface can support a maximum load of approximately 10 kg/dm². However, it is not suitable for regular or intensive use as a walking surface.

Applications

The AGF floor grille is ideal for environments where floor-level air distribution is necessary, such as offices, schools, retail stores, and hotels. It is specifically designed for floor installations and is not recommended for high-traffic walking areas.

Standard sizes

(Refer to the downloadable document for detailed size specifications.)

Airflow range

140 - 7.200 m³/h
For detailed performance data, refer to the provided diagrams.

Materials

Extruded aluminum frame and air deflector fins, RAL 9003 white powder coated or natural anodised finish.
