Description

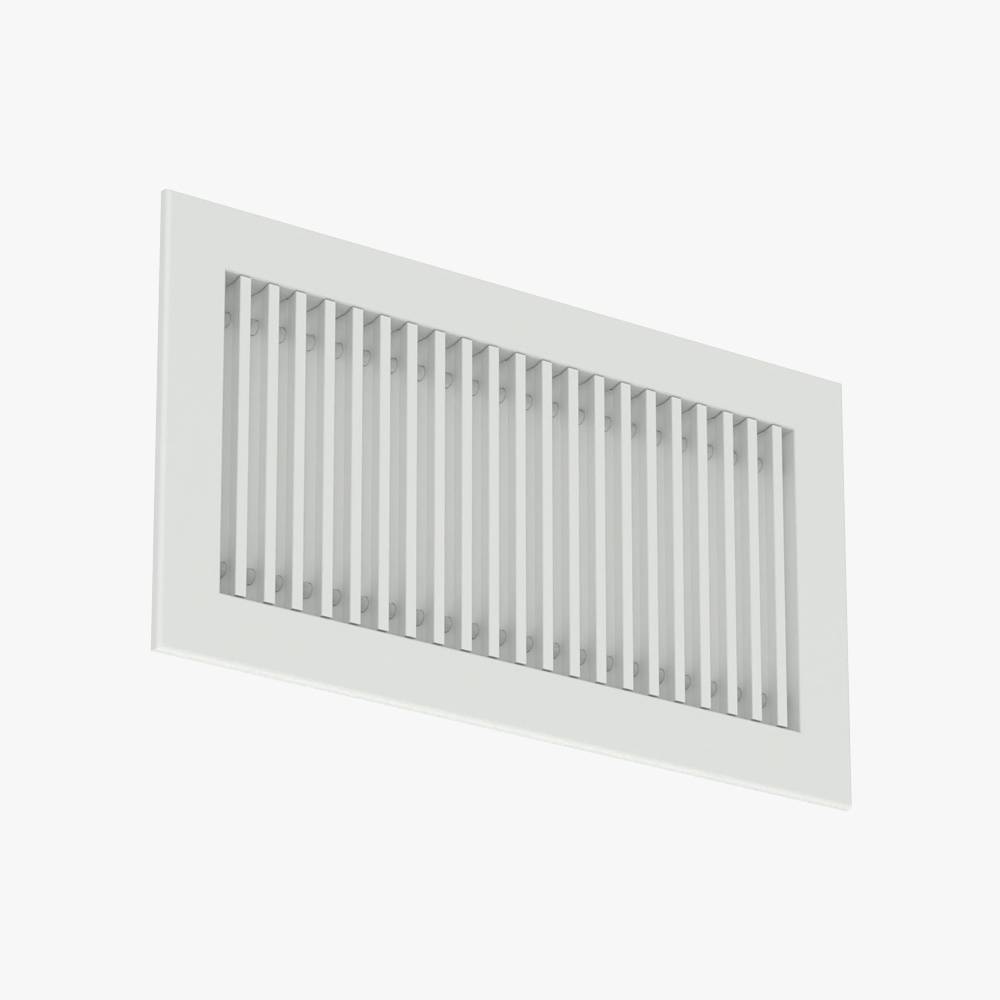

The AG is a rectangular linear bar grille designed for the supply or extraction of airflow, featuring horizontally positioned fixed aluminum deflectors. It is suitable for a variety of applications, ensuring optimal performance in most types of premises, such as restaurants, offices, and more. The AG grille is suitable for both ceiling and wall installations.
The recommended maximum temperature difference (Δt) for optimal performance is 6°C.
Versions
- AGD: Higher frameprofile with fixed fins.
- AGR: Lower frameprofile with fixed fins.
Applications
The AG wall grille is best suited for comfort environments where efficient air supply or extraction is essential, such as offices, schools, retail stores, and hotels.
Standard sizes
For detailed data, refer to the provided drawings.
Airflow range
150 - 9.000 m³/h
Materials and finish
Extruded aluminum frame and air deflector fins, RAL 9003 white powder coated or natural anodised finish.
Optional accessories
- Mounting options include clip-ons or hidden screws.

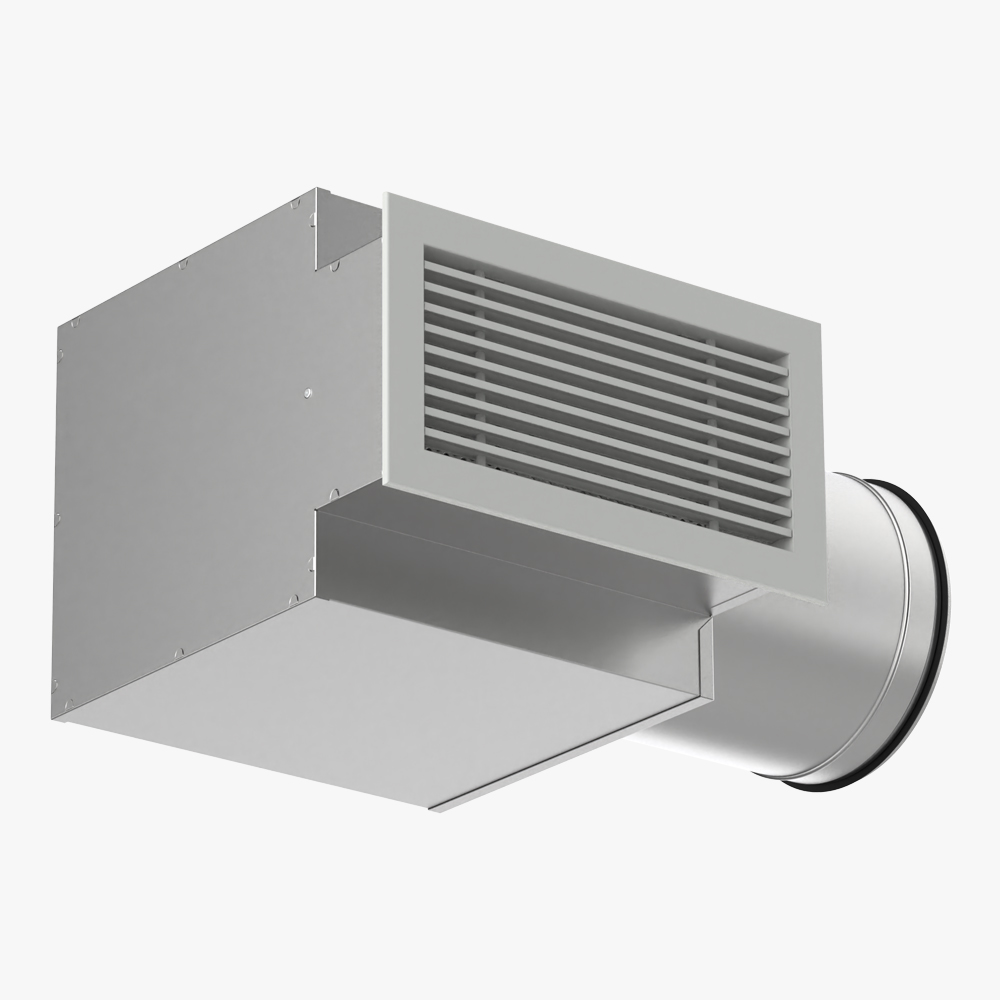

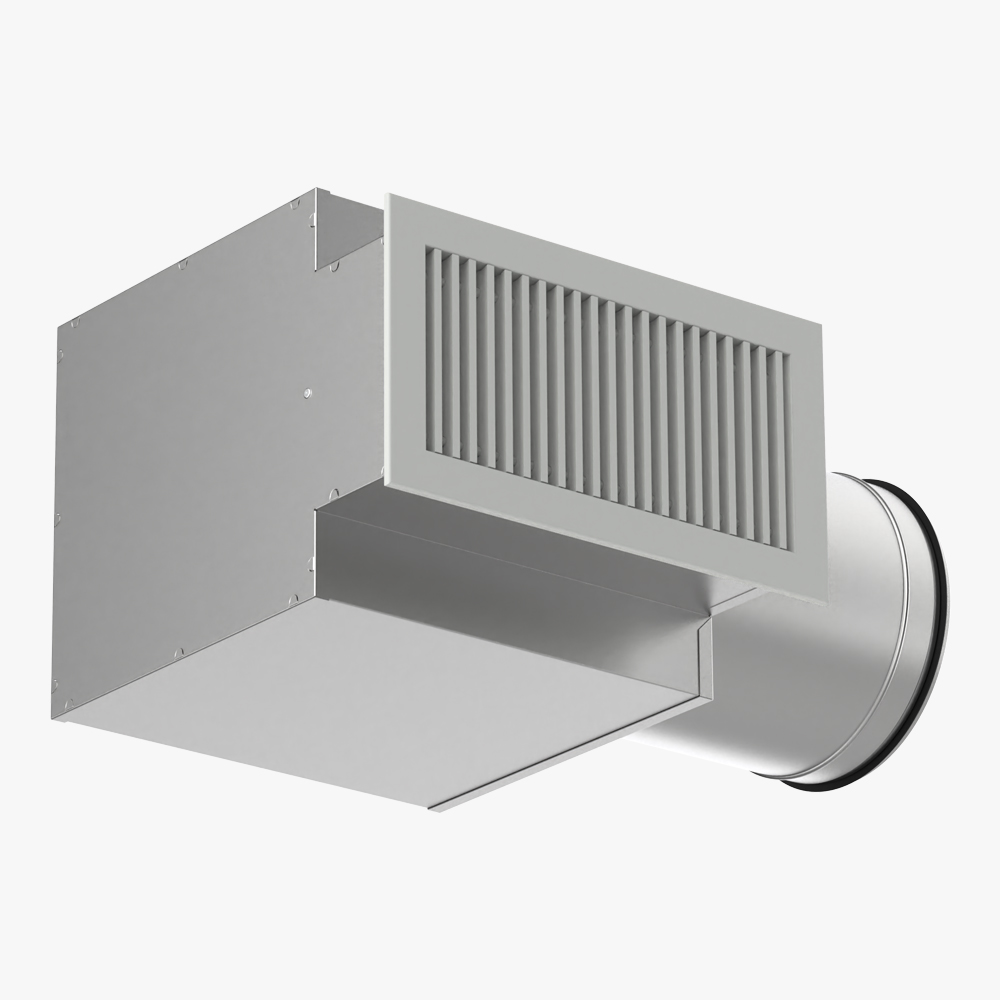

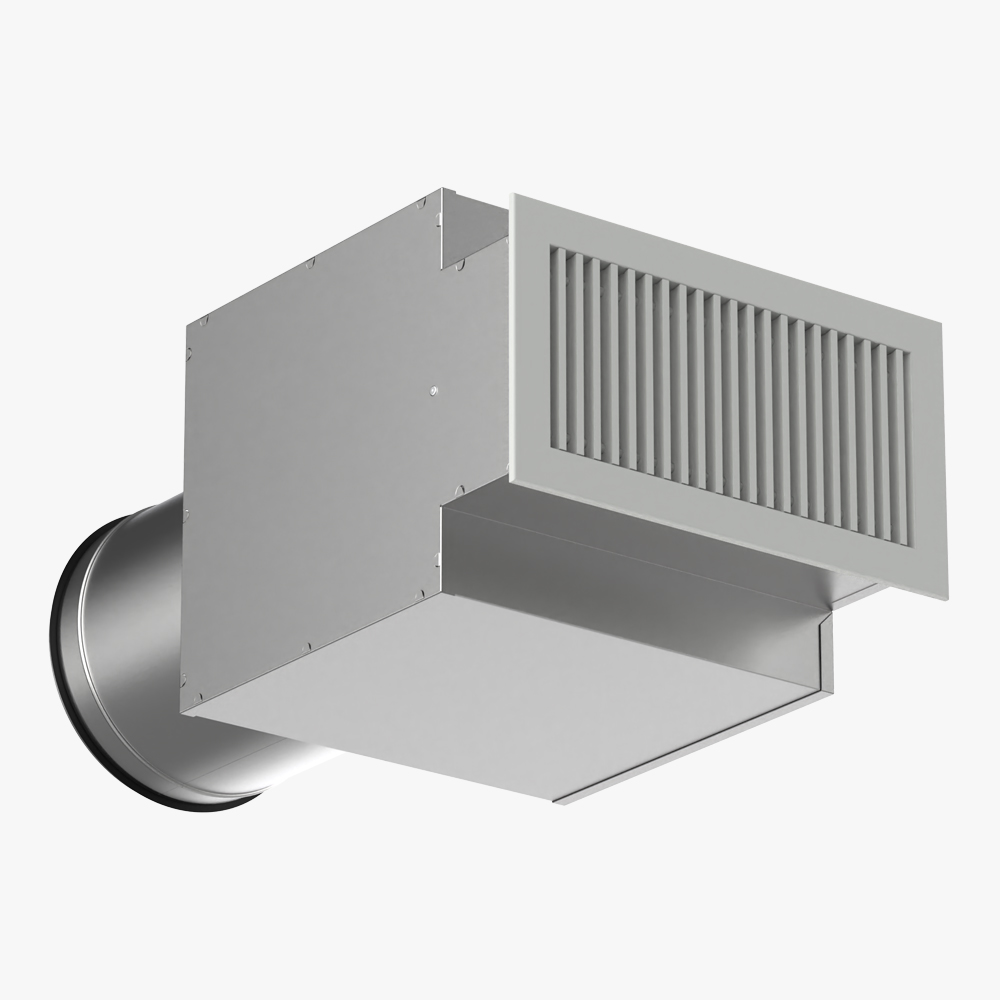

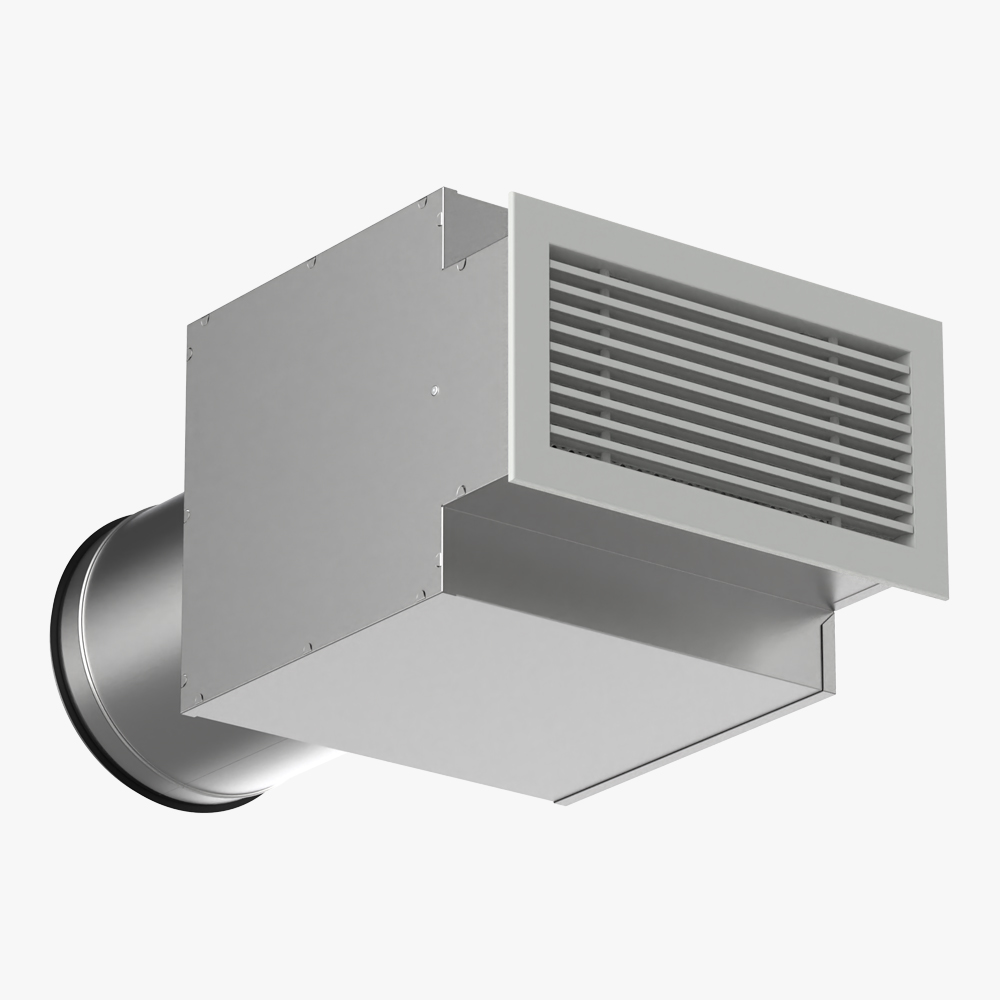

- DLKR commissioning box: The standard optional accessory for wall mounted AG grilles is the DLKR commissioning box, equipped with insulation, commissioning damper module, with measuring hoses.
- FLKR commissioning box: The FLKR commissioning box which is equipped with insulation, commissioning damper, with measuring tubes. Recommended for exhaust air ducts.
- DB-D sound-attenuated junction box: DB-D junction boxes are manufactured in a standard sound-attenuated design and can be ordered with 2 or 3 connection D75 sockets arranged in a row. Recommended for residential ventilation systems.
