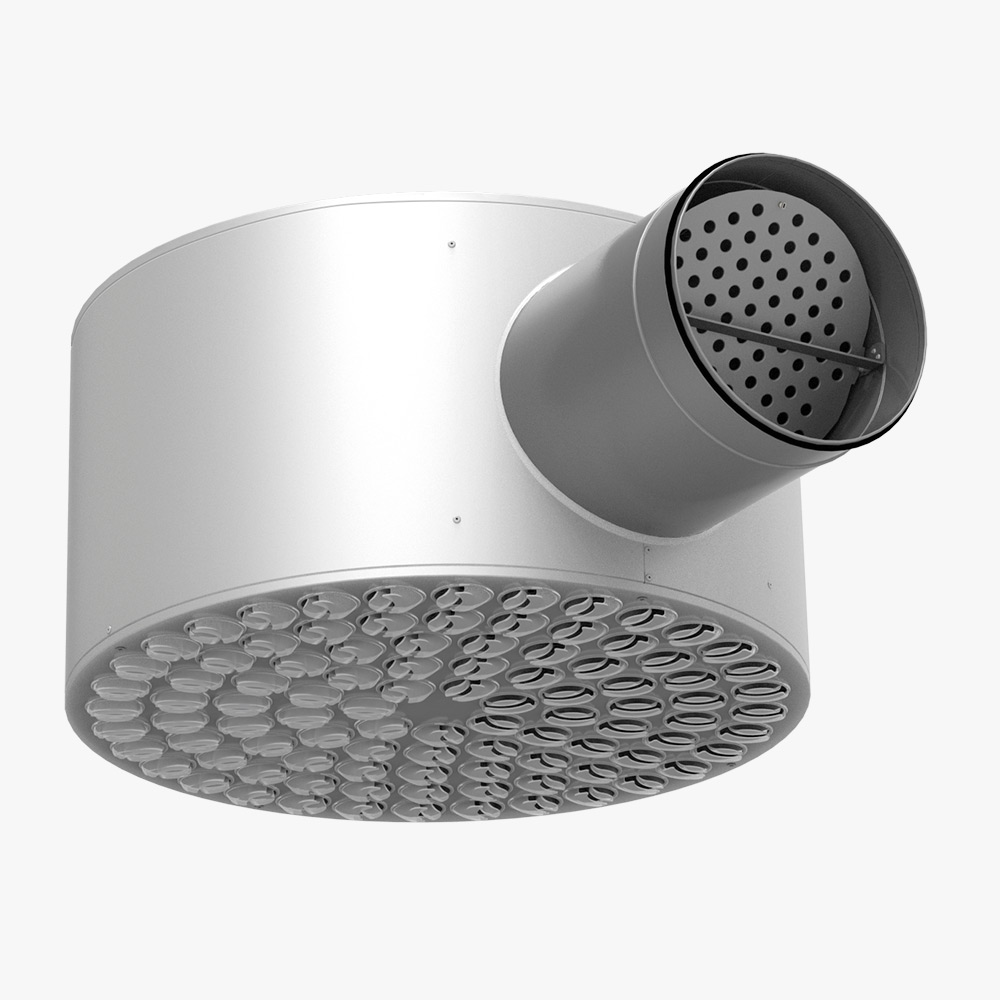

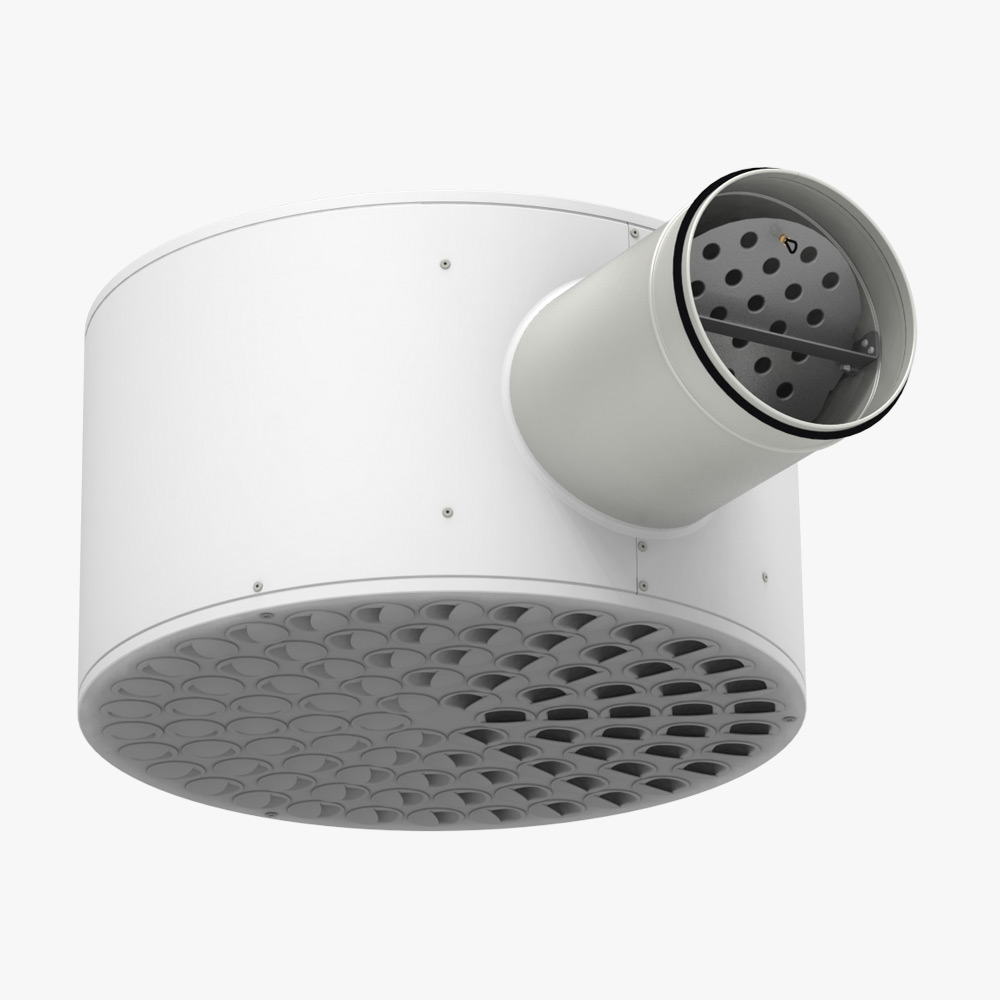

The DXR is a visibly installed supply air diffuser with a circular design, featuring aerodynamically shaped, rotatable nozzles on the front panel. It is designed for draught-free, flexible air diffusion with high induction. The 360-degree rotatable nozzles allow seamless adjustment of the ventilation pattern, offering horizontal, vertical, uni-directional, or swirl modes. The circular connection box includes environmentally friendly internal sound insulation and a commissioning damper equipped with measuring hoses for precise airflow measurement, ensuring low noise levels and accurate air volume control. Additionally, the damper blade is fitted with adjustment cords, simplifying commissioning and securing the damper to the desired airflow setting.
The DXR is best suited for environments where flexible air diffusion is essential, such as offices, schools, restaurants, retail stores and fitness centers. The recommended maximum temperature difference (Δt) is -10 °C.
Ø100-400 mm.*
* Inlet connection size.
72 - 1.098 m³/h (20-305 l/s), see the diagrams below for further information.
Casing, distribution plate and connection spigot from galvanised sheet steel. The casing is powder-coated in RAL 9003 color. The air duct connection is equipped with an EPDM rubber seal. Cleanable surface coated insulation from 100% recycled, non allergenic, hydrophobic PET material. Damper module of galvanised steel with cords of polyester. White nozzles are Polypropylene.
